Discover future-proof hardware

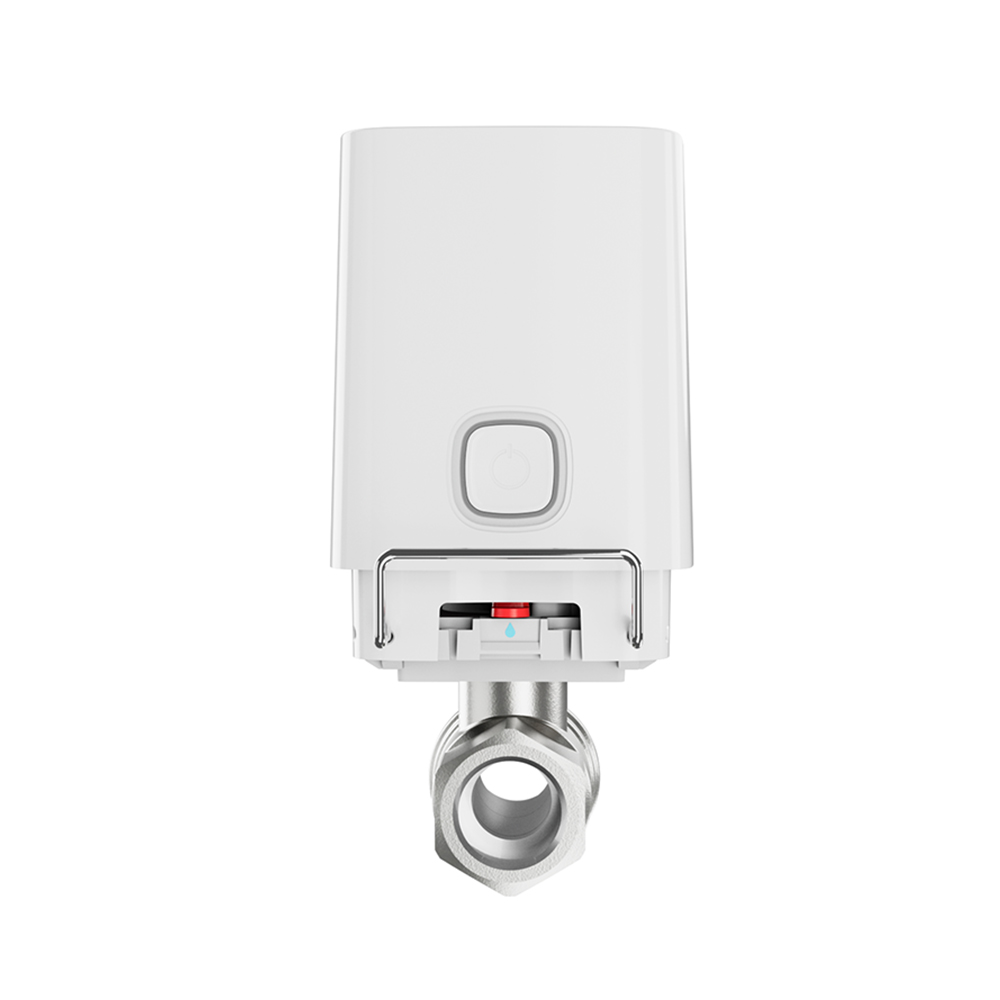

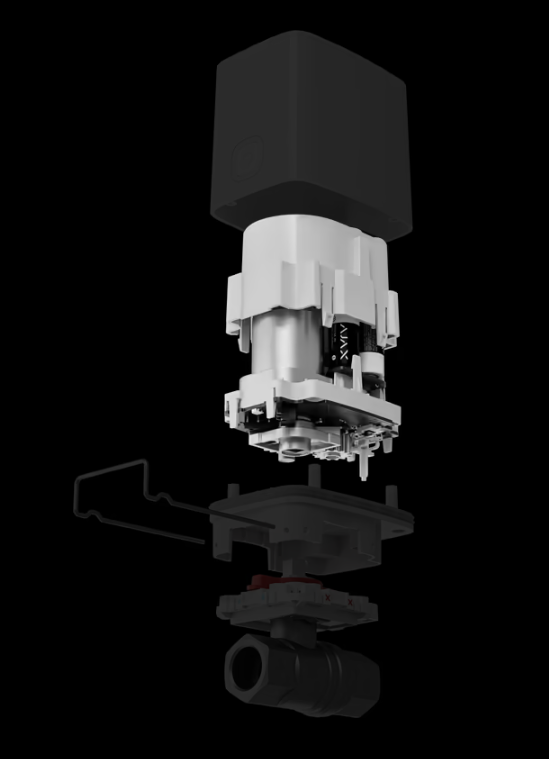

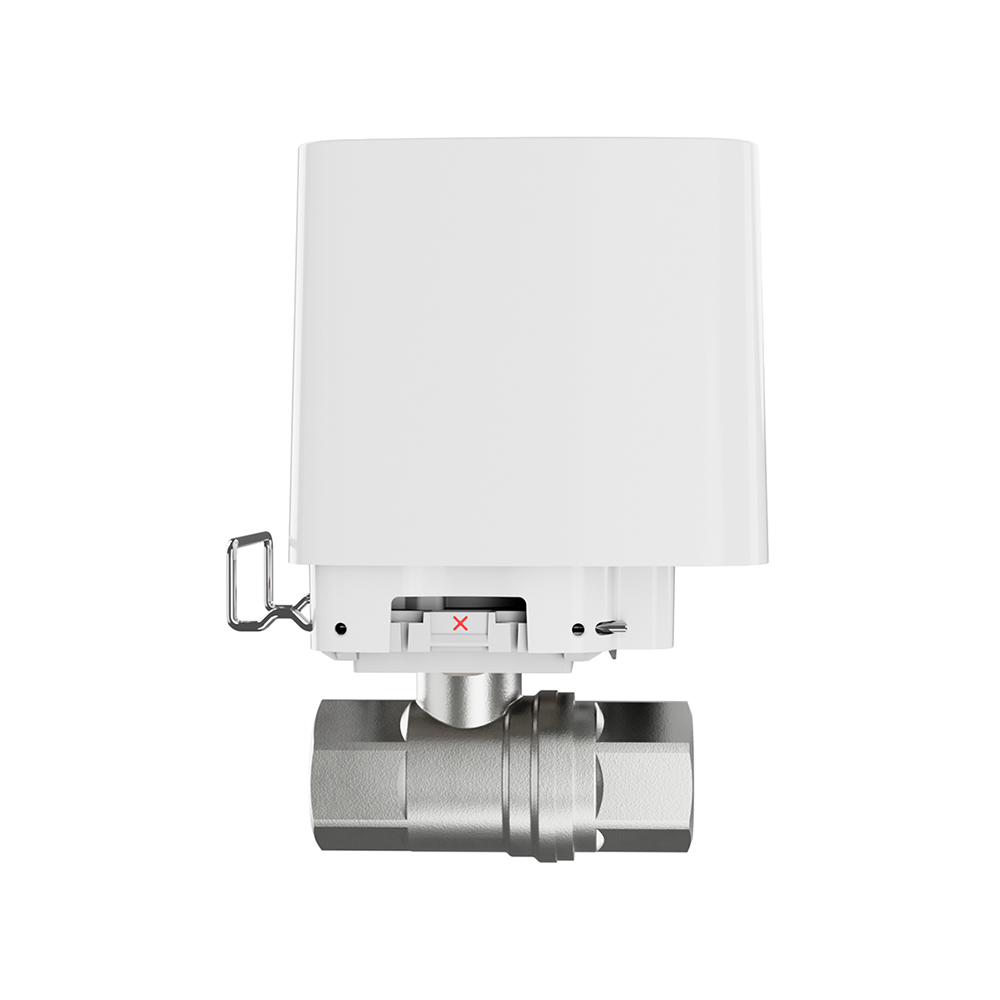

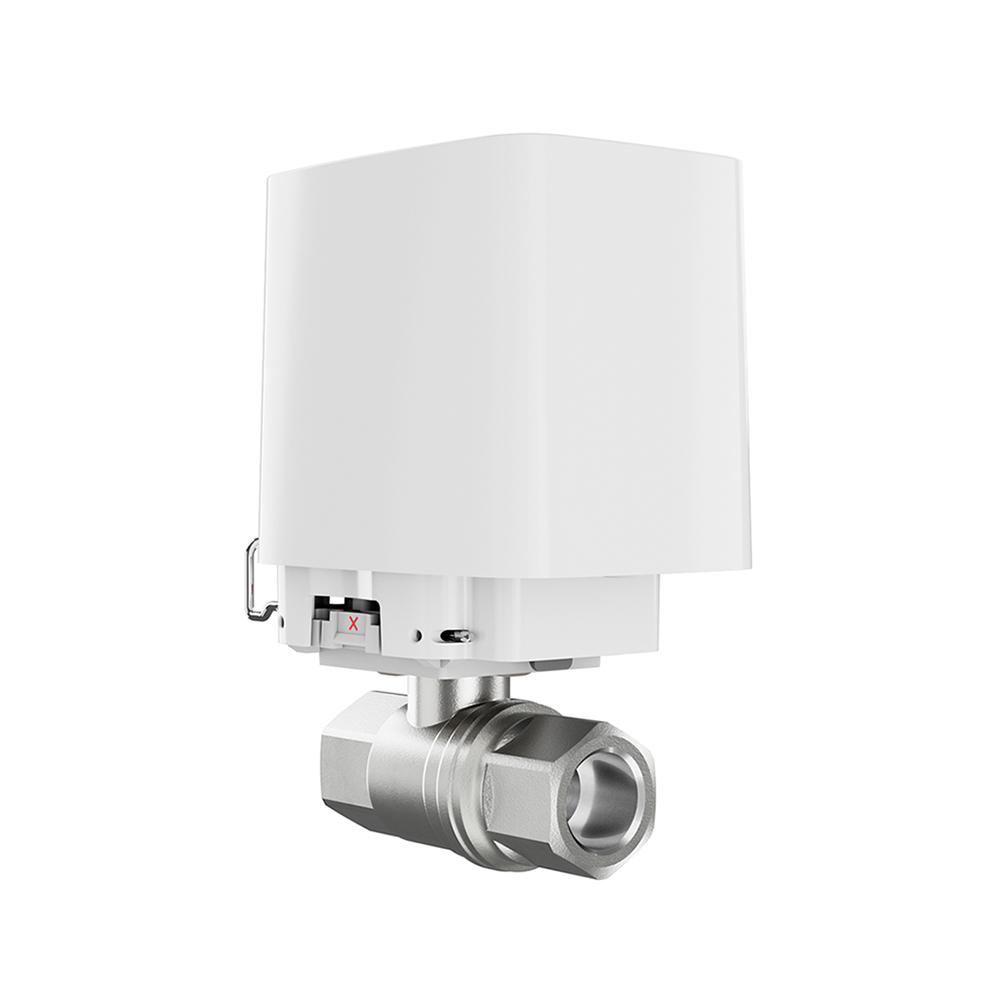

		Electric actuator

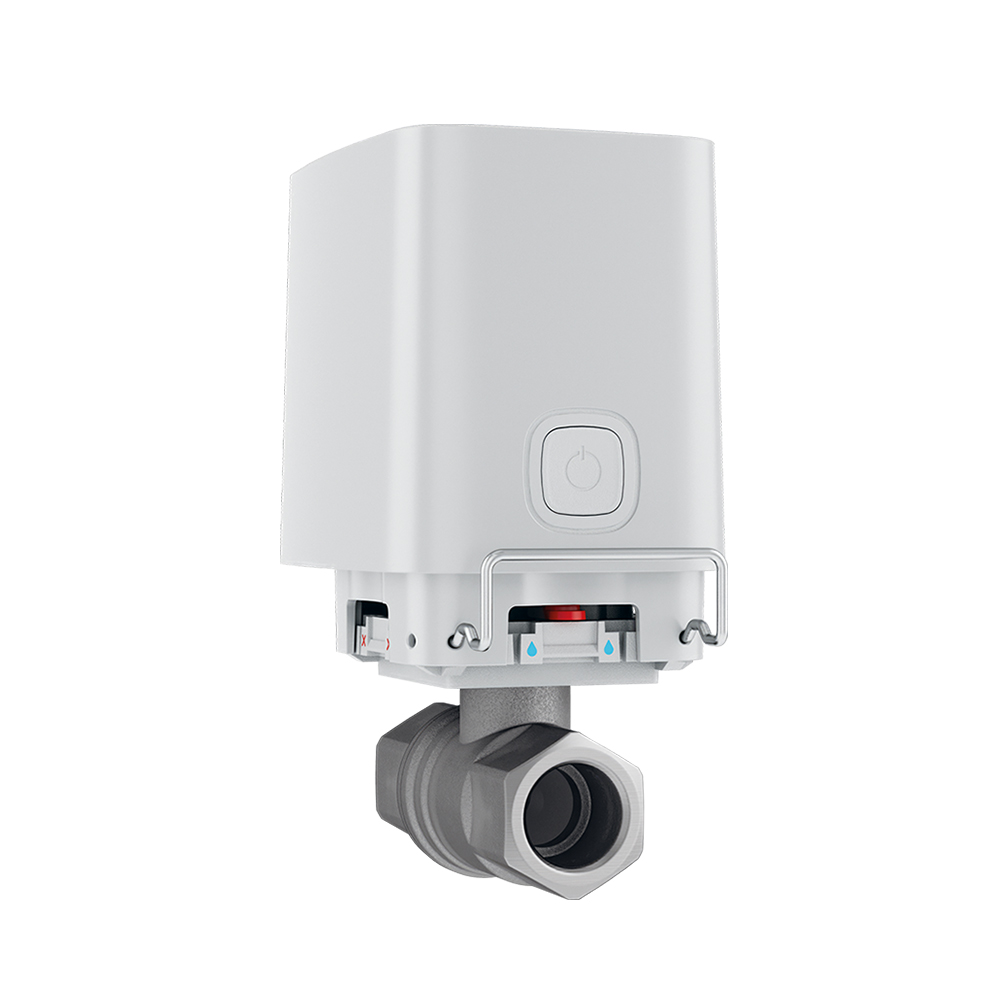

		Button to control the water supply
		Locker to mount electric actuator without tools

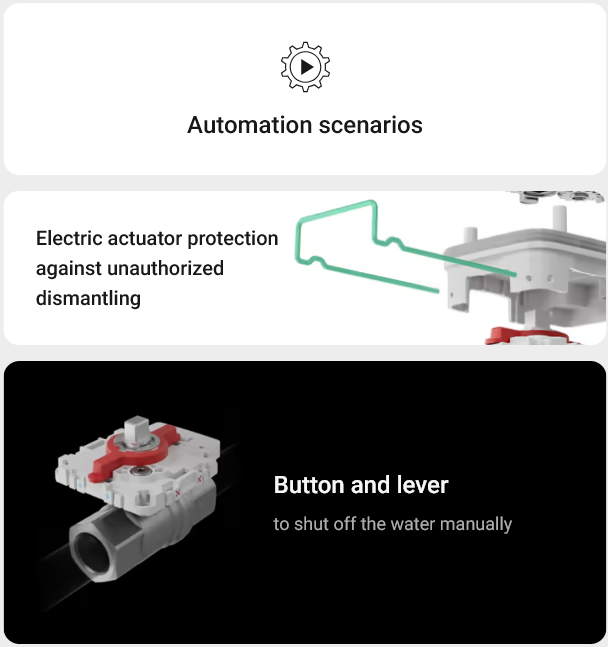

		Mounting platform with lever for manual shutoff
		RuB valve

Hardware

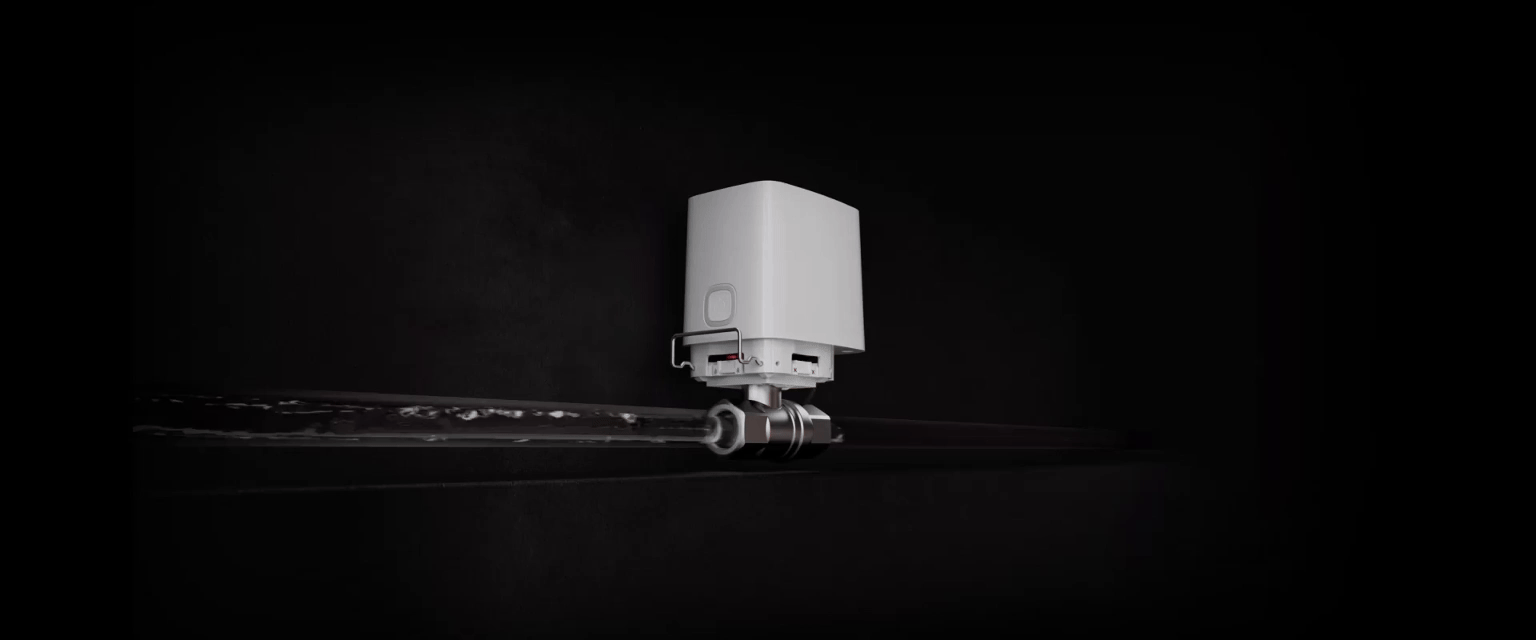

Water shut-off in 7 seconds

Ajax WaterStop is equipped with a powerful actuator of up to 8.5 N•m torque. This is enough to shut off even a stuck-up valve without the risk of damaging it. Under normal operating conditions, Ajax WaterStop shuts off the water in 7 seconds after the command or automatically by scenario whenever LeaksProtect or a third-party sensor detects flooding. In a setting with a ¾-inch pipe and 2.5 bar of pressure in the water supply system, less than 1 liter of water will leak out.

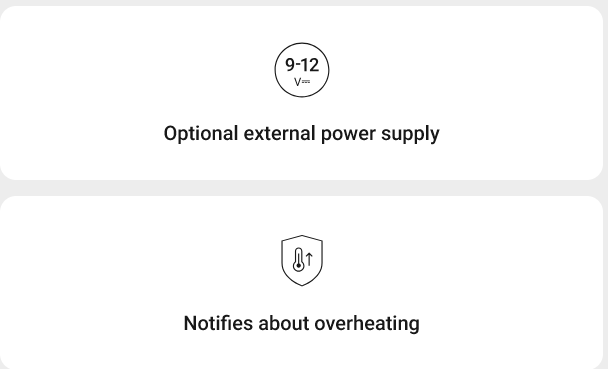

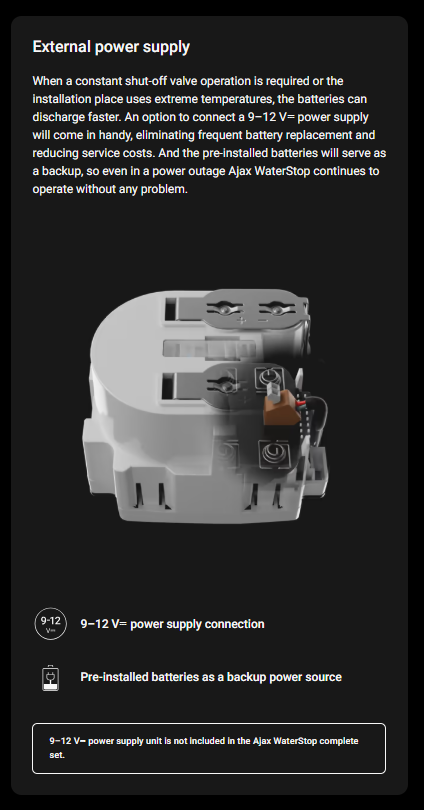

Inside the water leak prevention system based on Ajax, every device operates either on pre-installed batteries or has a backup power supply in case of a blackout. The system monitors the facility 24/7, giving you complete peace of mind that the property is protected.

Protected on every level

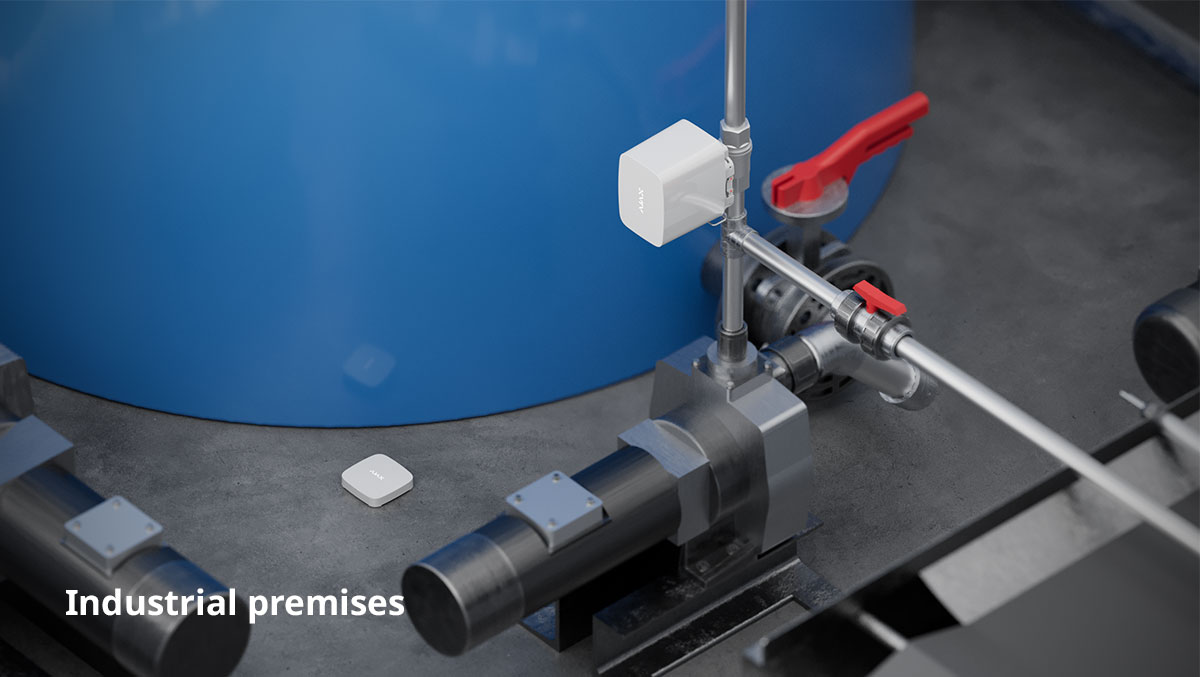

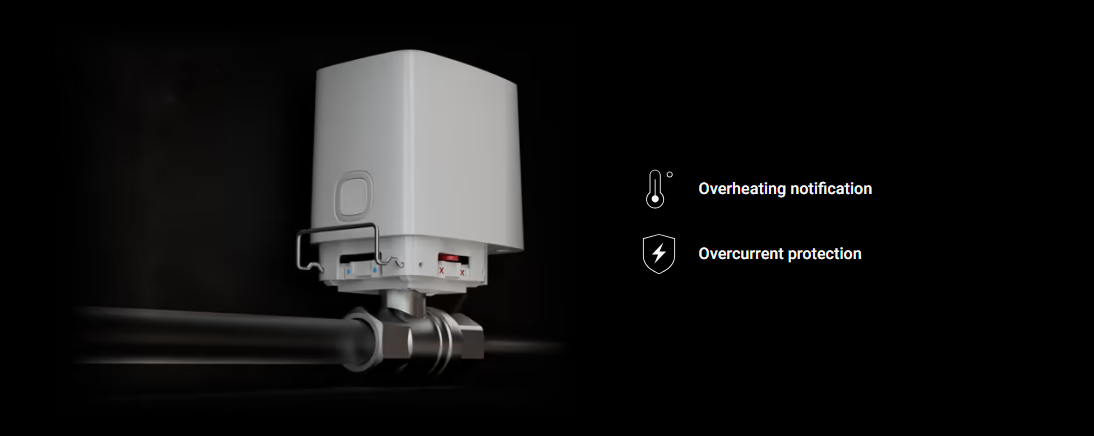

Ajax WaterStop is suitable for controlling both hot and cold water supplies and is ready to operate in challenging environments. With additional protection, Ajax WaterStop withstands overcurrent and notifies about overheating, making it impossible for the electric actuator to fail even when the shutoff valve is stuck.

One-stop solid brassware

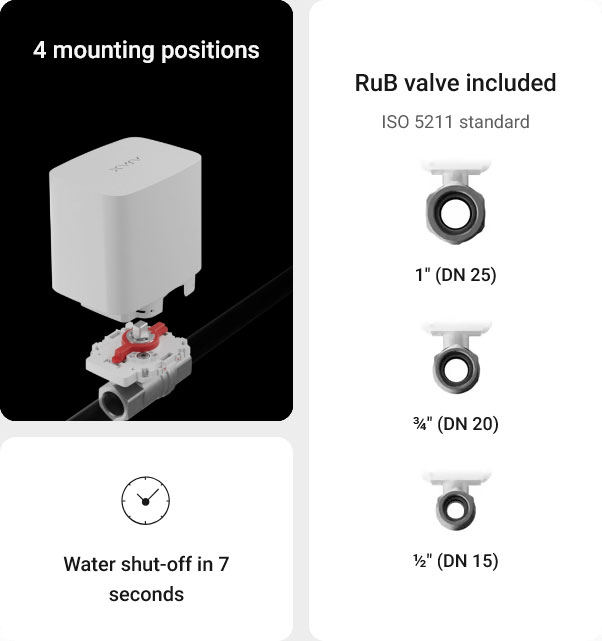

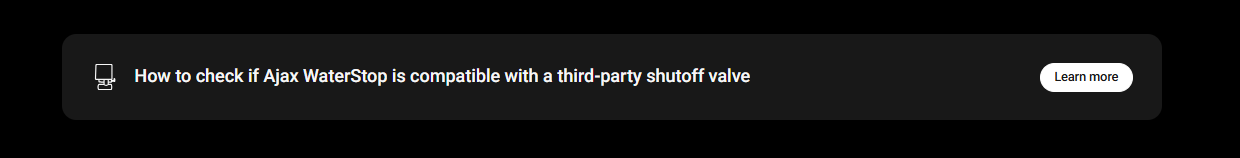

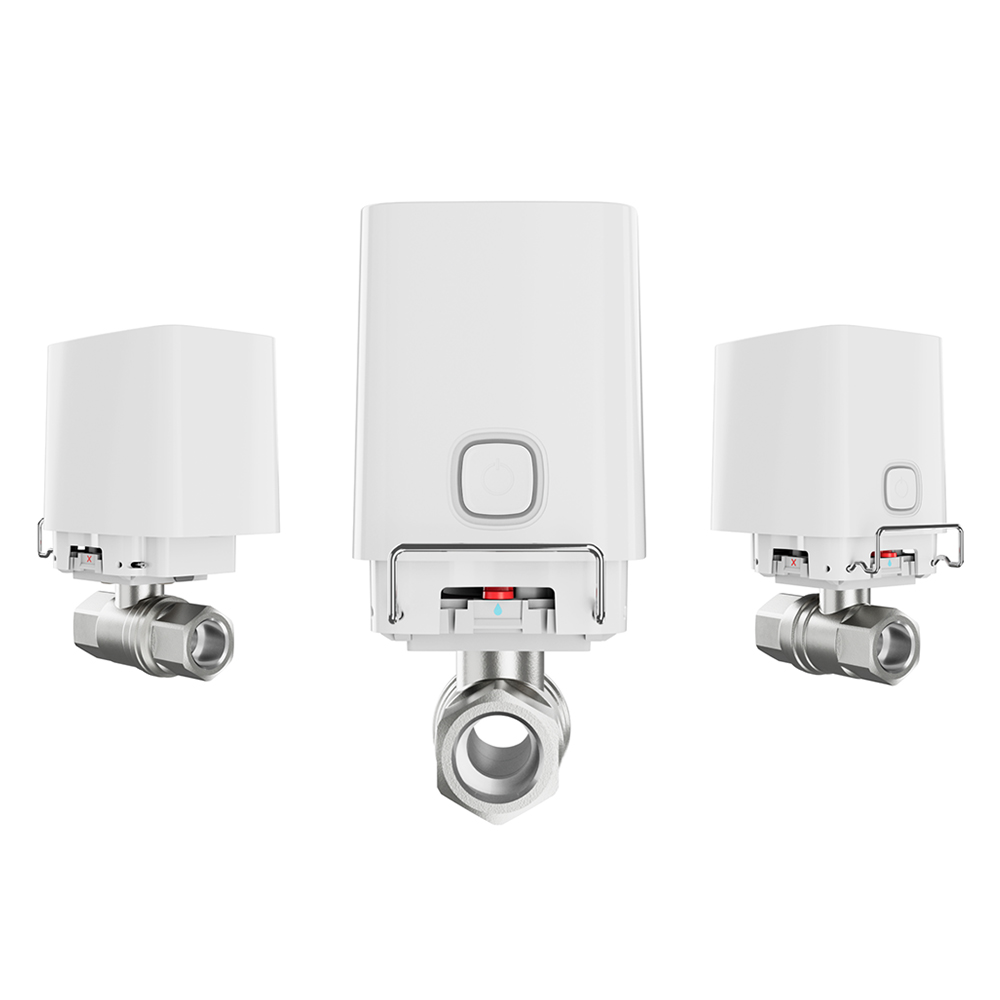

Ajax WaterStop is available in three versions with different valve options: ½” (DN 15), ¾” (DN 20), or 1” (DN 25). Those are the most common sizes used to cover any demand, from residential to business facilities. Also, the Ajax WaterStop electric actuator is compatible with all ball valves that meet the ISO 5211 standard. So when it comes to specific tasks and sizes, a plumber installs an available on every market compatible valve, and the installation engineer easily connects the electric actuator.

Installation without any construction involved

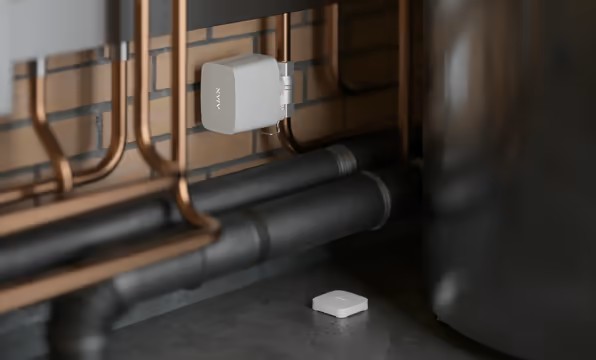

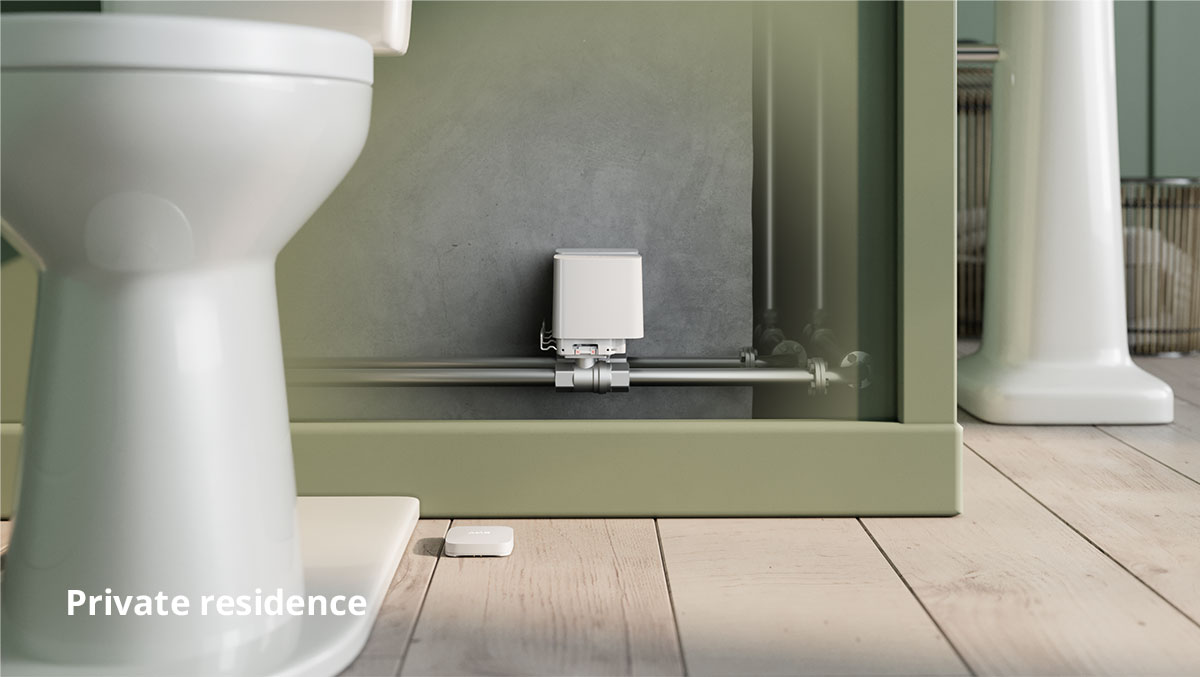

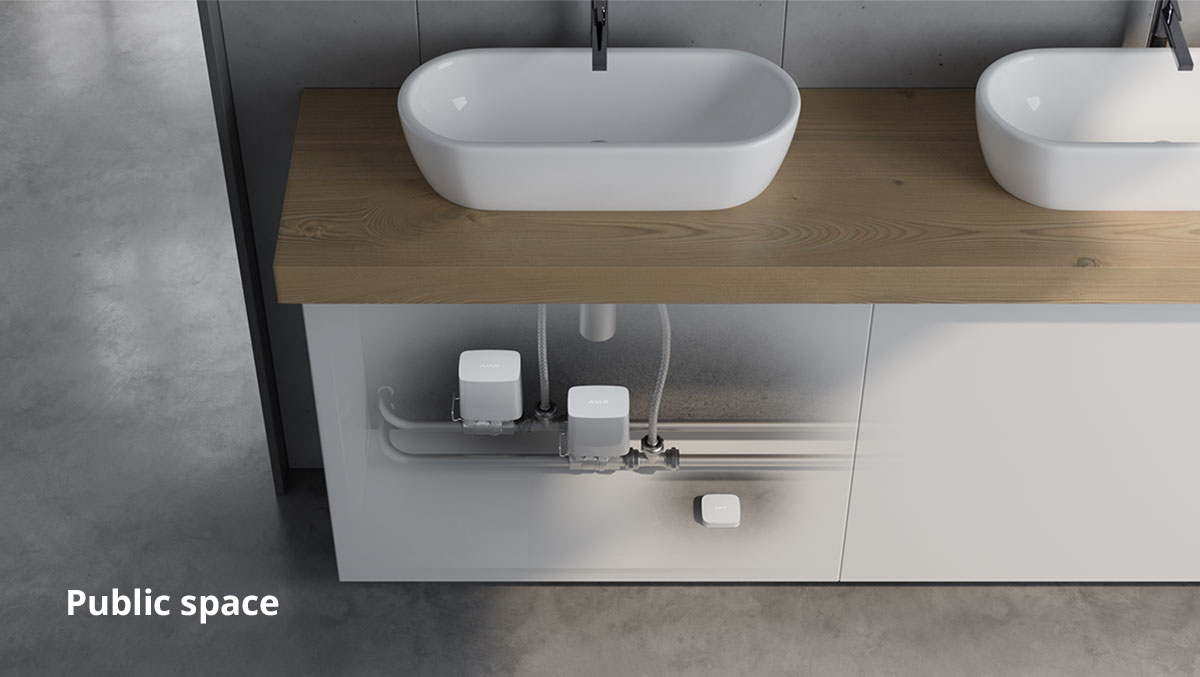

The myth about anti-flood systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for clients and professionals. Cutting-edge hardware and software engineering allowed us to implement advanced capabilities with significant autonomy in a compact size. Miniature Ajax water leak detectors suit hard-to-reach places and do not require enclosure disassembling — they can be installed on a horizontal surface without attaching. The shutoff valve is installed in line with an existing plumbing system. The actuator unit does not require wires and fits limited spaces, having four possible installation positions towards the valve.

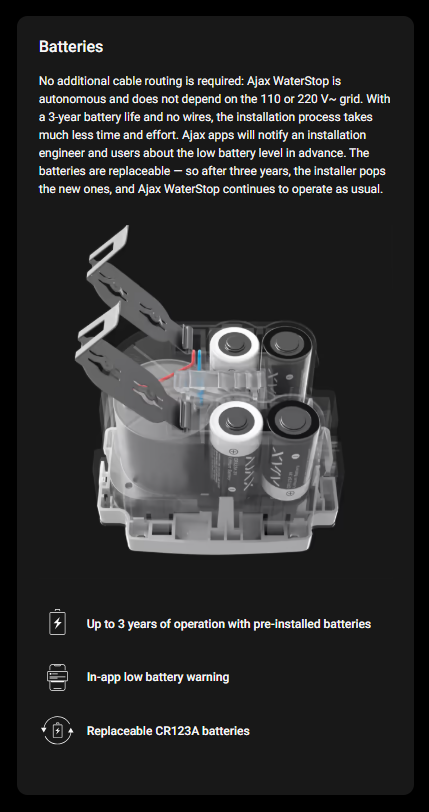

Autonomous operation

Stable performance for years

Unique wireless technologies

The Ajax system uses two-way secure radio communication based on Jeweller proprietary protocol. It supports block cipher encryption and device authentication on every session with the hub to prevent sabotage, spoofing, or data theft.

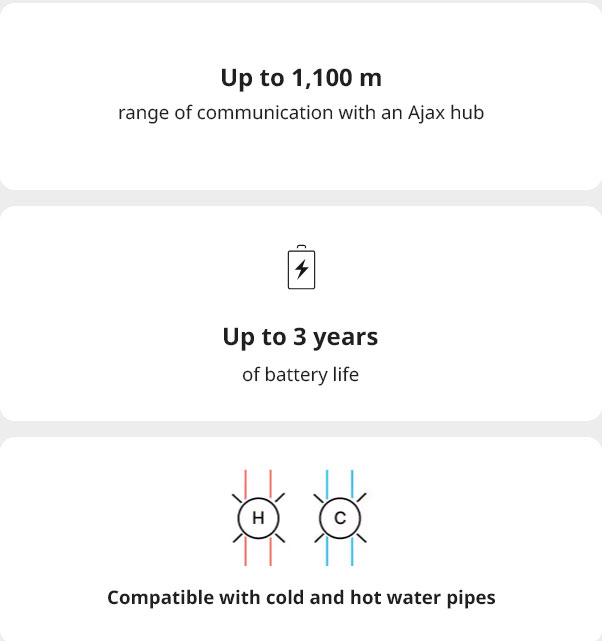

Ajax wireless technology has up to 1,100 meters of radio signal communication range in an open space, making it on average longer than competing solutions from different manufacturers. Automatic power adjustment makes it energy efficient by not using the maximum power of radio transmitters in system devices on a regular basis. It is also more stable, using less noisy radio frequencies. For protection against radio interference and signal interception, Ajax hubs use frequency hopping: the system automatically changes frequency within a band and notifies the security company and users about the jamming.

	Up to 1,100 meters of radio communication range with a hub		Encrypted two-way radio communication		Notifications about jamming and connection loss

Scaled and comprehensive

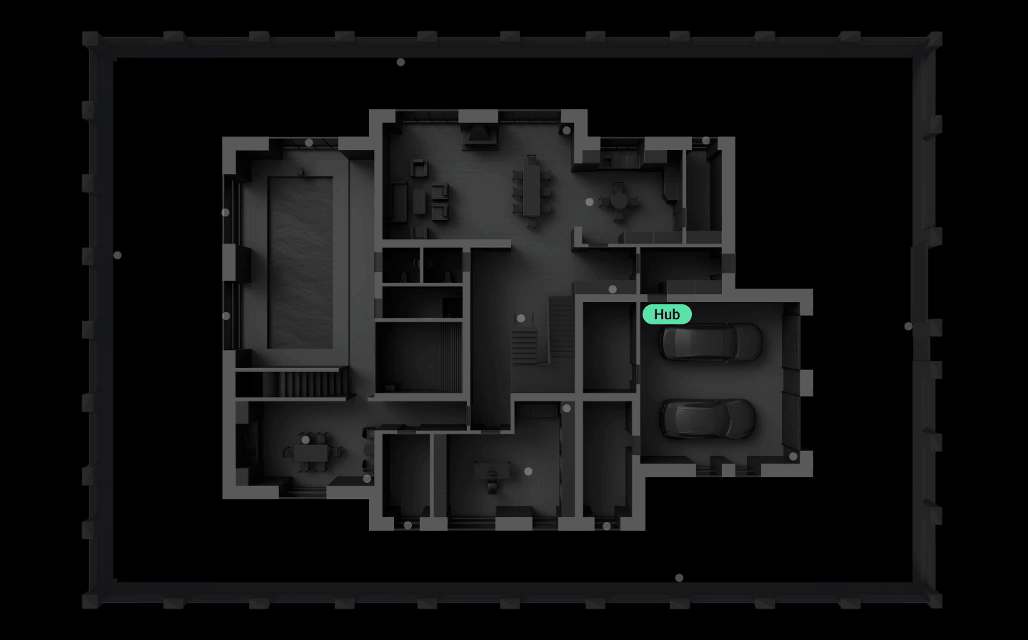

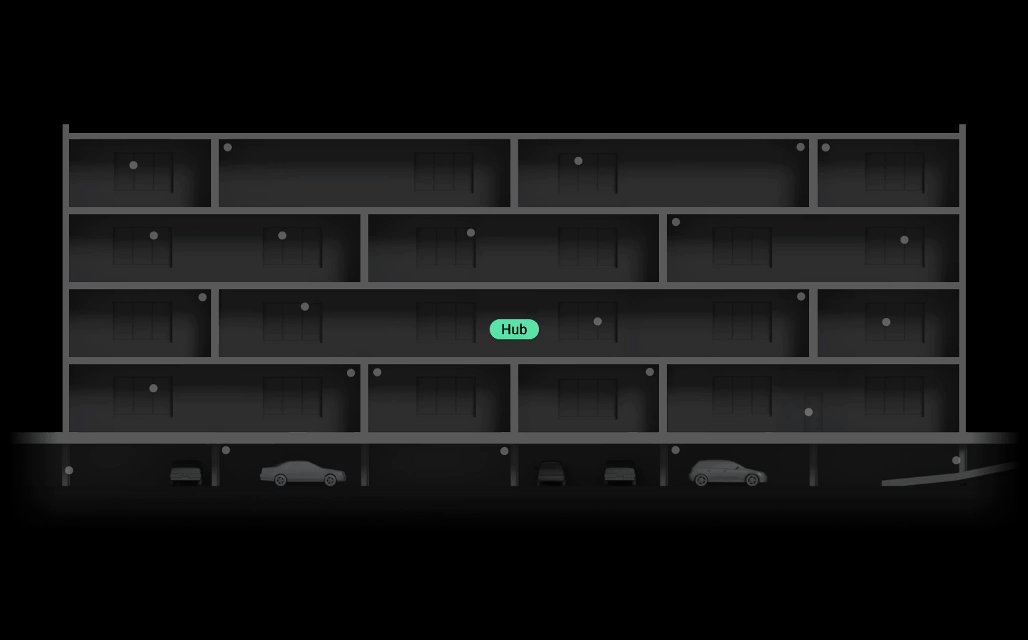

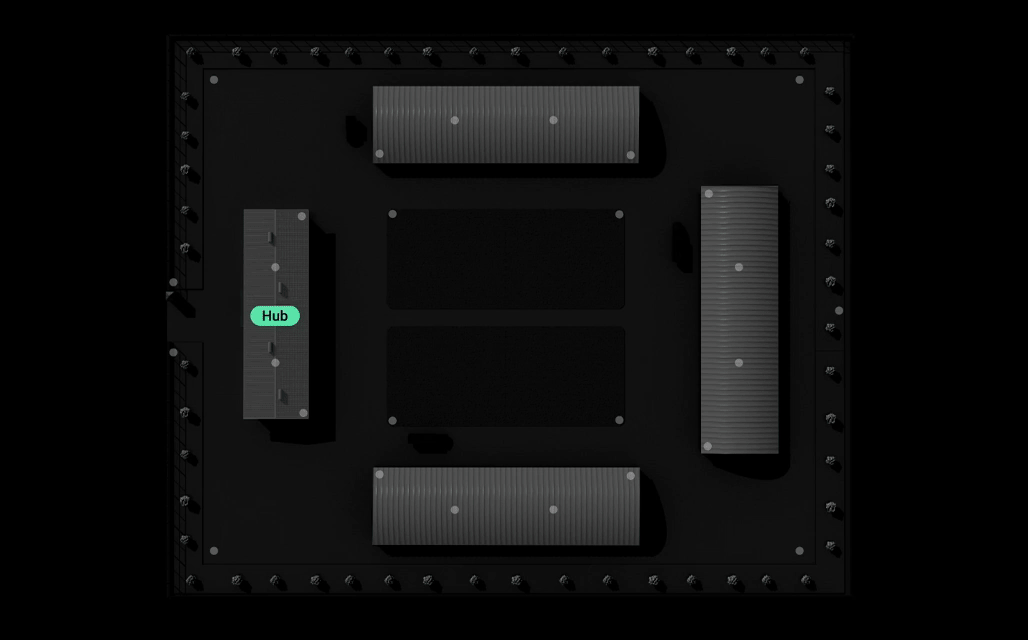

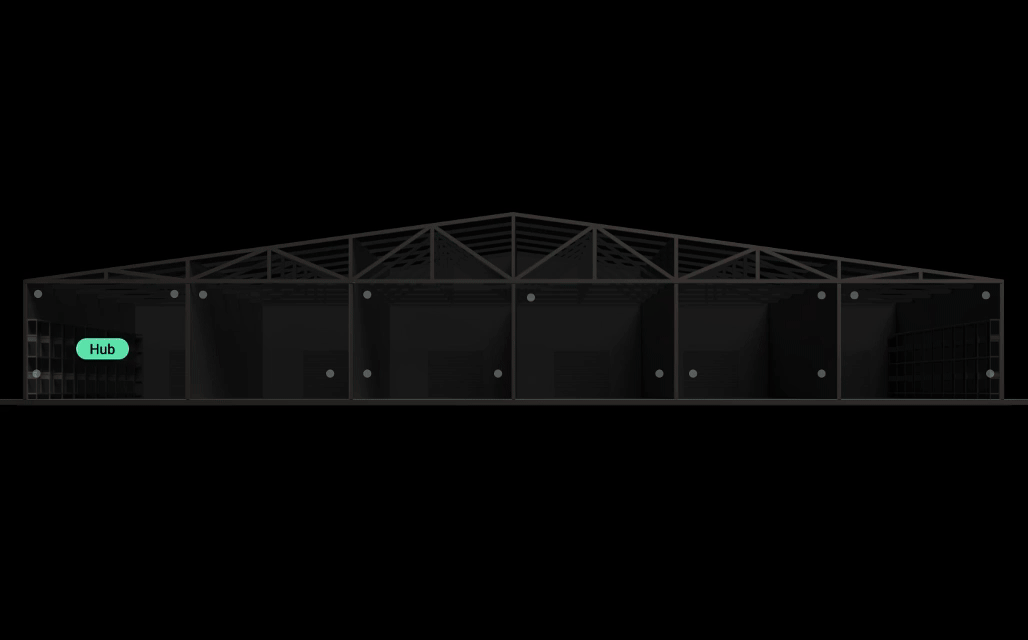

Use the ReX range extender for complex radio signal conditions like large houses with thick walls or warehouses with several buildings. ReX boosts the range of all Ajax devices and manages their communication with the hub via Jeweller. And ReX 2 assures stable communication even through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering underground parking, basements, and metal hangars.

Software

All data at a glance

Full monitoring for the building

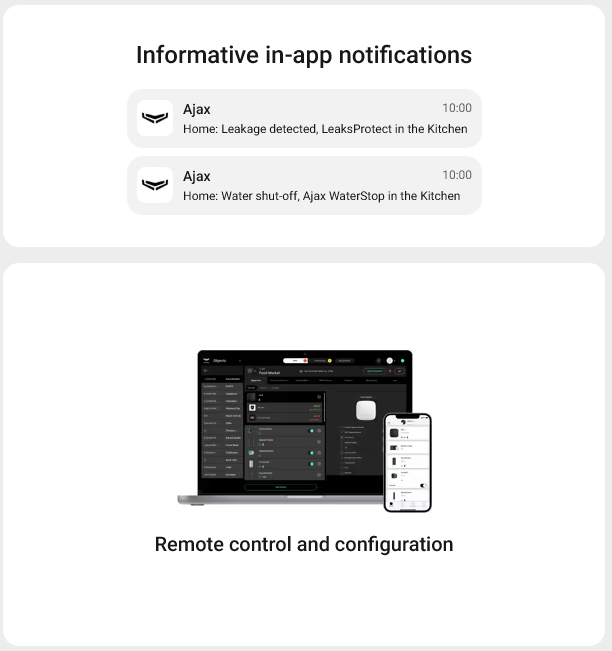

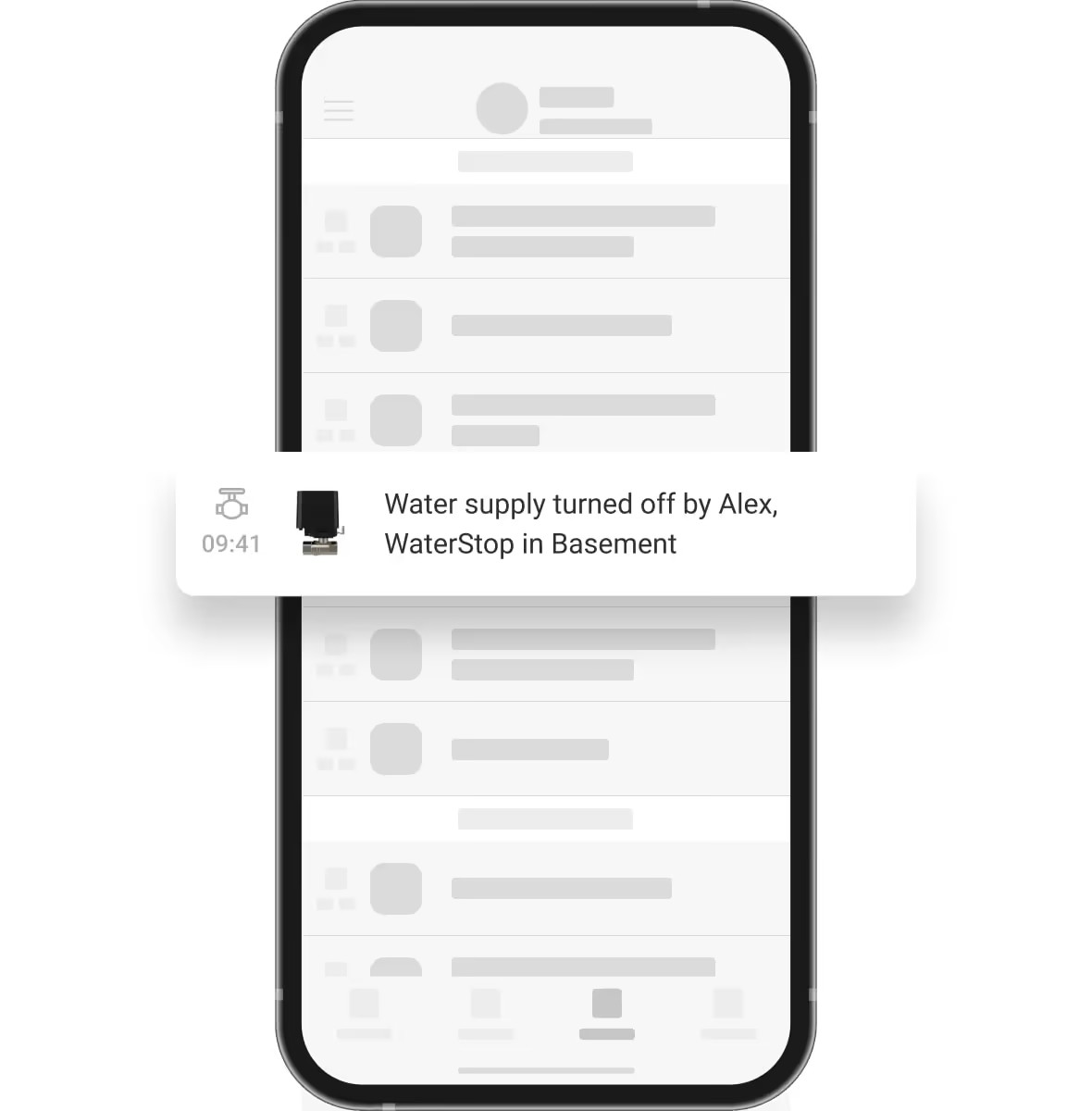

With PRO Desktop, building admin staff can observe security, automation, and smart home devices. Device statuses, event log, and microclimate data — the operator has a complete picture in one intuitive interface, all informative and centralized. And photo verification of alarms from detectors of the MotionCam lineup will help to find out the situation at the protected facility and quickly respond to it. The installer can remotely change the settings and provide additional services according to the object specifics.

Advanced automation for greater safety

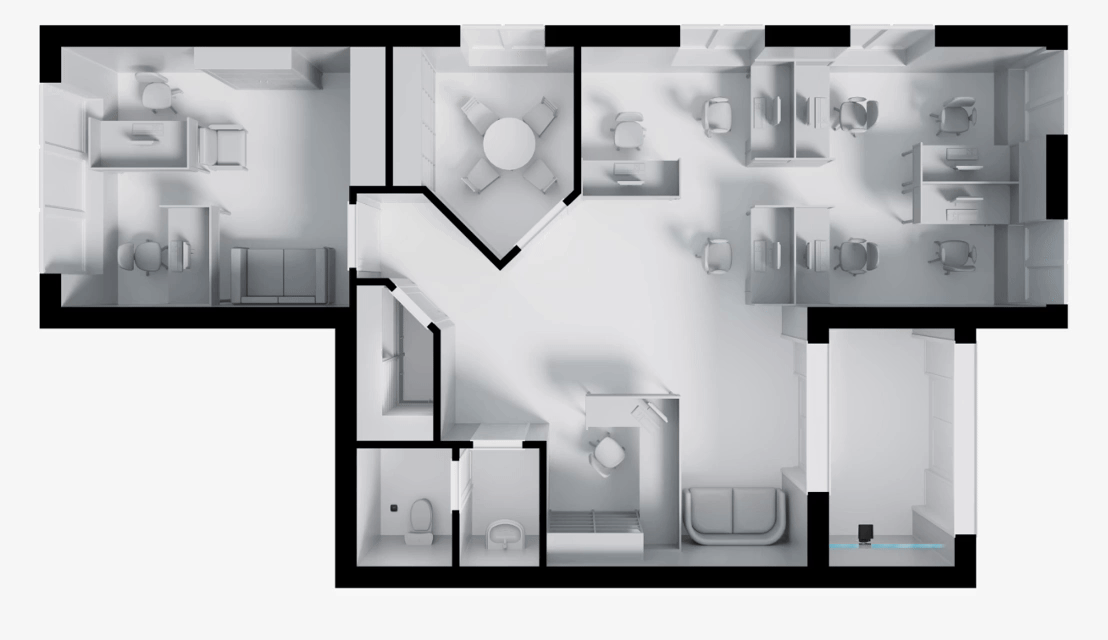

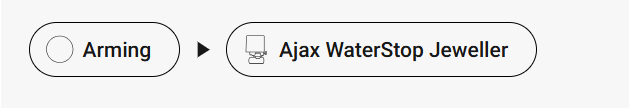

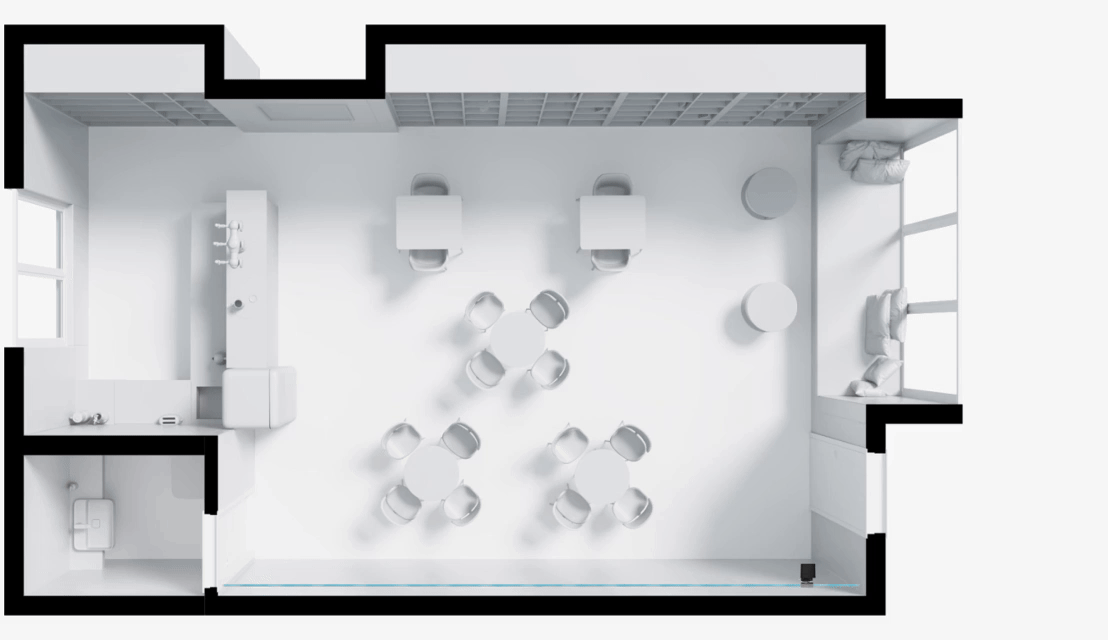

Ajax WaterStop is a part of the Ajax ecosystem. Using scenarios , it can interact with automation devices and PhOD detectors of the MotionCam lineup. Whether it’s a minor water leak or a massive flooding, Ajax WaterStop shuts off the water in a matter of seconds. At the same time, MotionCam (PhOD) sends pictures to Ajax apps to identify what causes the water leak and assess the possible damage. And to prevent emergencies, automatic water supply control will turn off the water when no one is using it — a reliable combination of security and automation that runs like a Swiss watch.
